AKAT103 Cable pulling grips Ø40-50mm for underground cabling | Evik

cable pulling systems

Kaltsa 2

sizes available

Code	DIAMETER[mm]	LENGTH[MM]
ΑΚΑΤ101	20-30	700
ΑΚΑΤ102	30-40	700
ΑΚΑΤ103	40-50	800
ΑΚΑΤ104	50-65	800
ΑΚΑΤ105	65-80	900
ΑΚΑΤ106	80-95	1.000
ΑΚΑΤ107	95-110	1.100
ΑΚΑΤ153	110-130	1.400
ΑΚΑΤ154	130-150	1.500
ΑΚΑΤ155	150-180	1.500
AKAT175	10-15	500
AKAT182	15-20	600

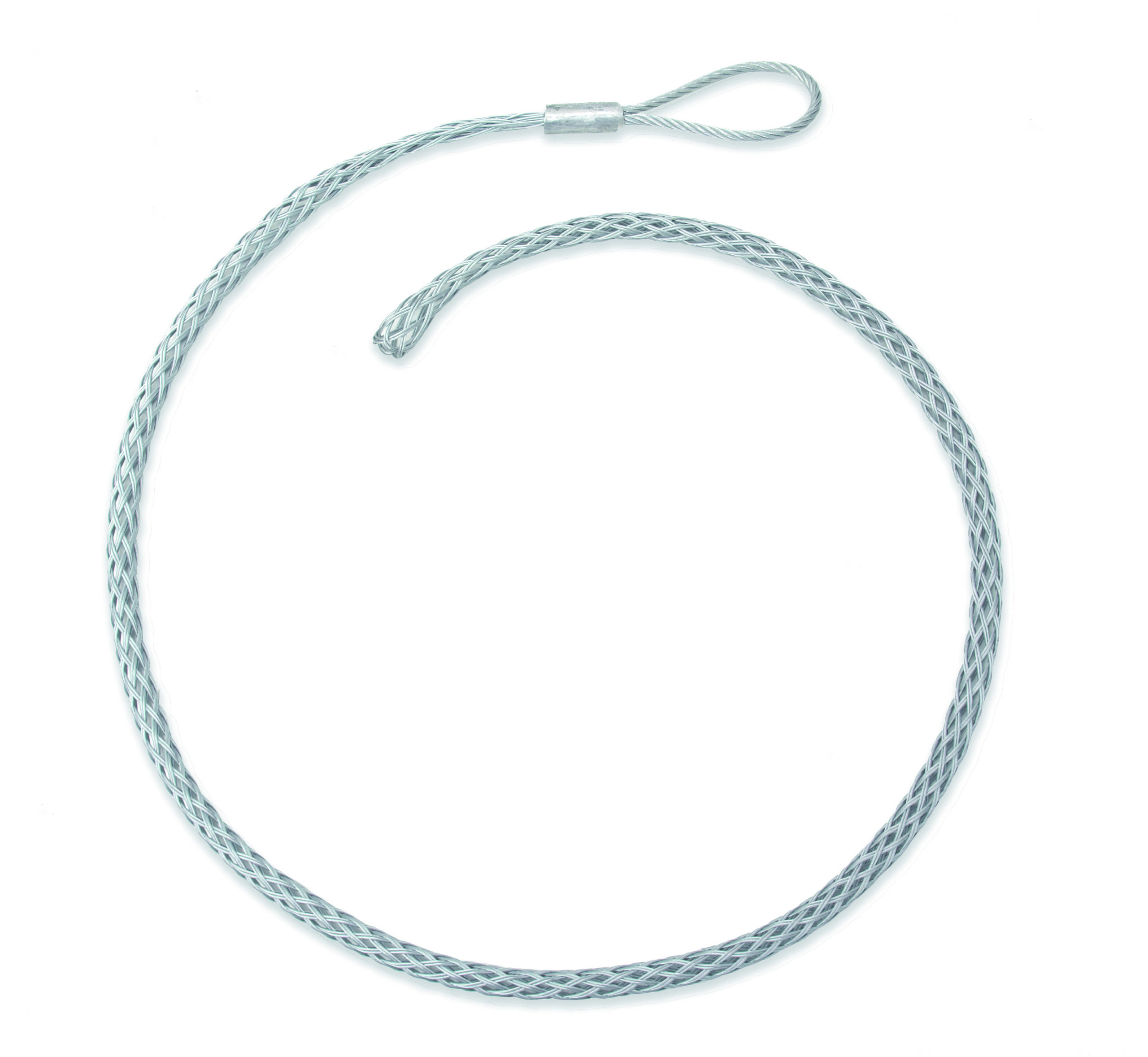

AKAT103 Cable pulling grips Ø40-50mm for underground cabling

AKAT103

The mesh is constructed of 19strand double steel cord of high flexibility.

Therefore, high tensions can be transferred safely and high penetration can be achieved.

NOTES

Lengths which are performed in the table correspond to the mesh length.
Diameters which are performed in the table correspond to cable diameter.

Thrust Ability — THRUST ABILITY

Breaking Strength — 4800kg
BREAKING STRENGTH

Pulling Strength — 1600kg
PULLING STRENGTH

Mesh length — 800mm
MESH LENGTH
